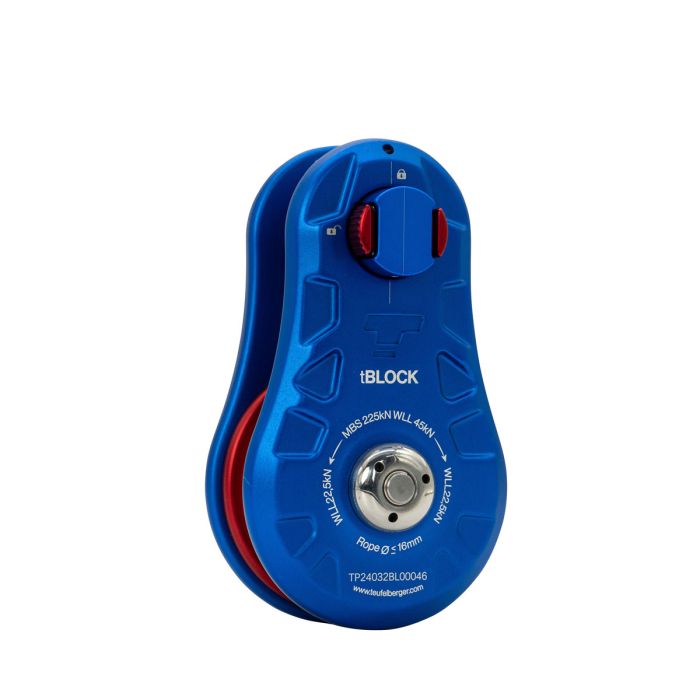

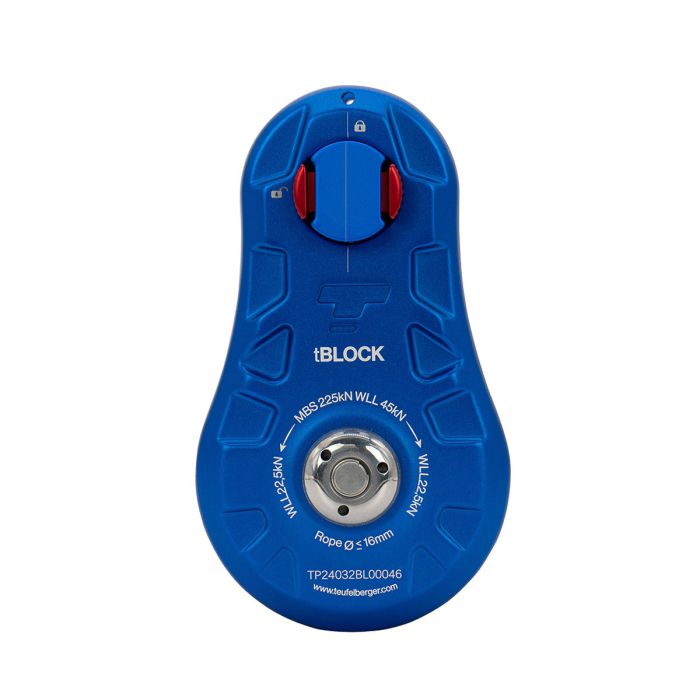

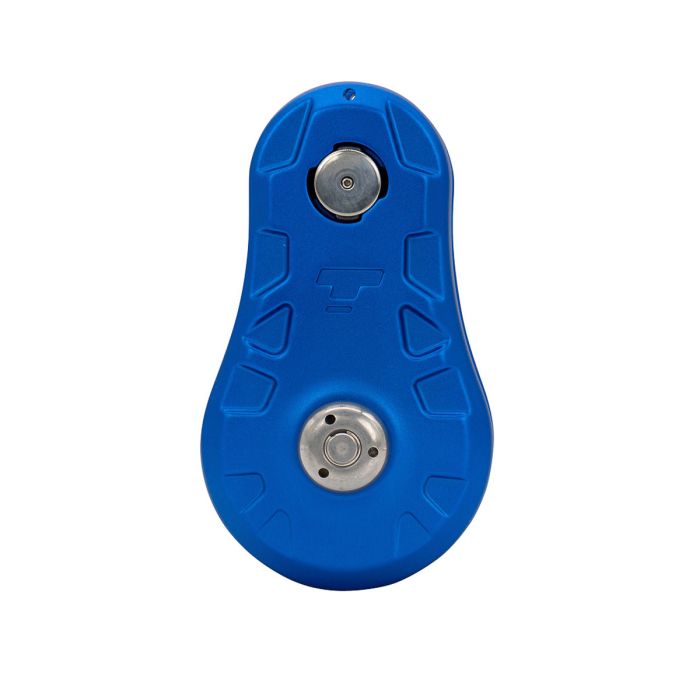

Teufelberger tBLOCK Rigging Pulley
tBLOCK – Makes rigging look easy.

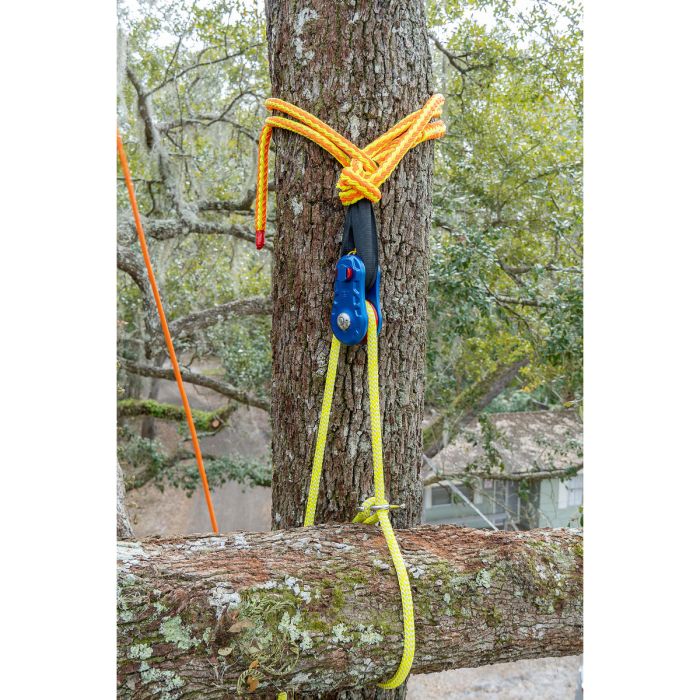

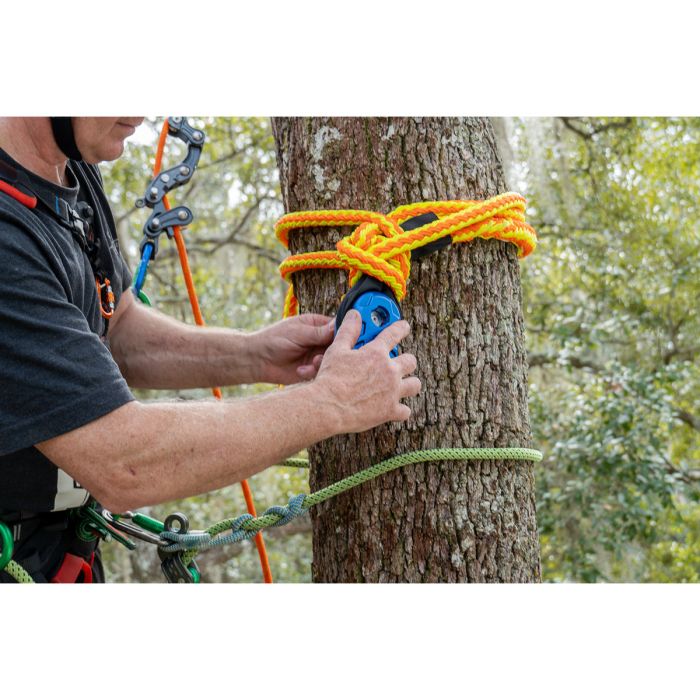

tBLOCK is the rigging pulley from Teufelberger for lowering loads in applications for arboriculture. The unmistakable matrix design and hot forged aluminium side plates characterise tBLOCK.

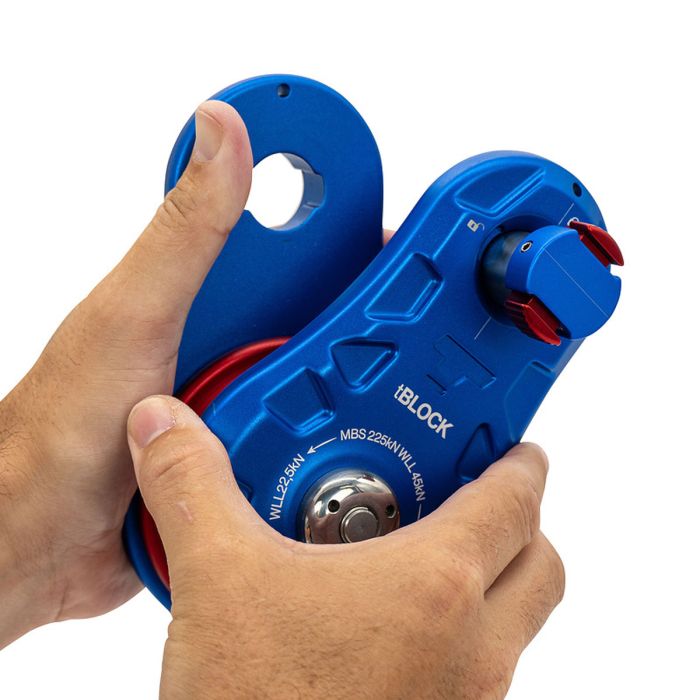

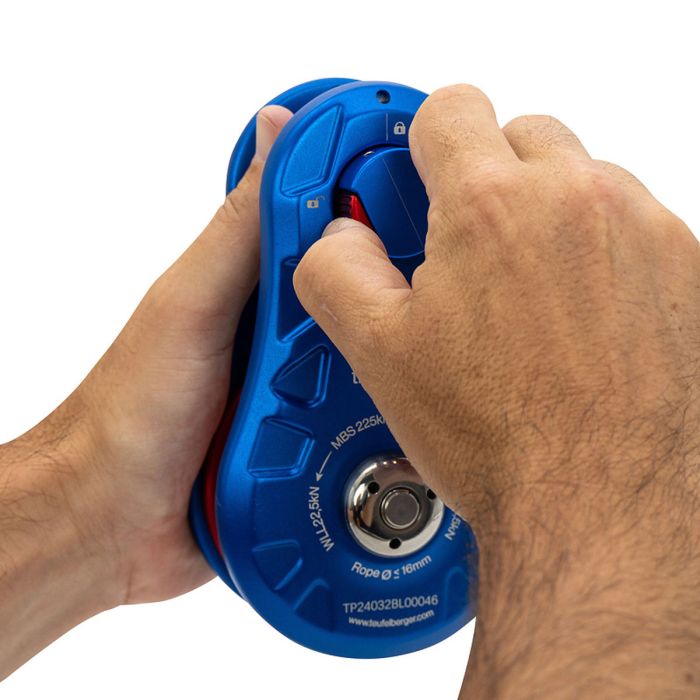

The rigging block was developed together with FTC and impresses with its light weight and user-friendly spring locking system. The side plates of the pulley are movable and can be opened and closed effortlessly thanks to the easy-to-use threaded locking bolt.
tBLOCK is certified in accordance with the Machinery Directive 2006/42/EC and is therefore approved for handling loads. It has a Teflon bearing, which increases efficiency through continuous use.
tBLOCK is suitable for ropes with a diameter of up to 16 mm and is delivered in a reusable polyester bag.
Features:
- 45 kN WLL / 225 kN MBS
- Lightweight – 1,605 g
- Smart and easy-to-use opening system
- Hot forged side plates
- Made of aluminium and stainless steel
- Developed together with FTC
Specifications
MBS: 225 kN
WLL: 45 kN
Height: 167 mm
Width: 96 mm

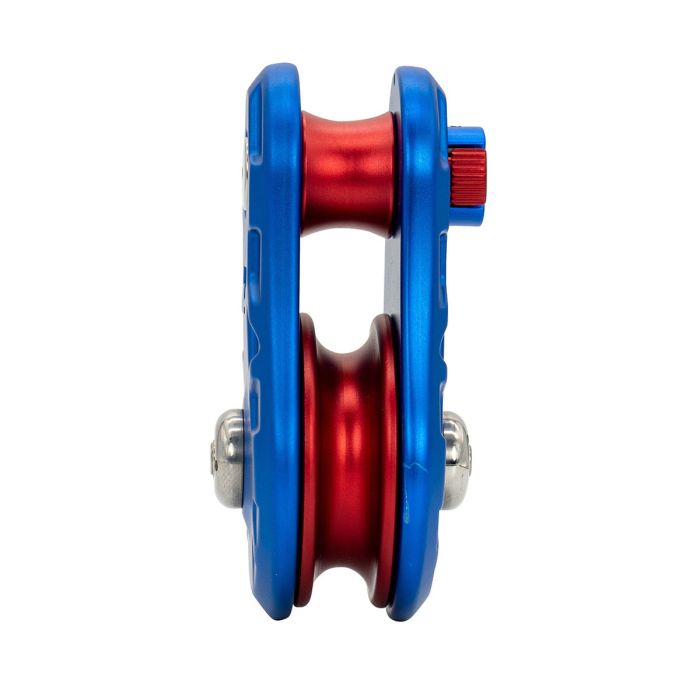

Depth: 76 mm
Weight: 1,605 g
Bearing type: Teflon plain bearing
Max. rope diameter: 16 mm
Standards: Machinery Directive 2006/42/EC
Color: blue / red
