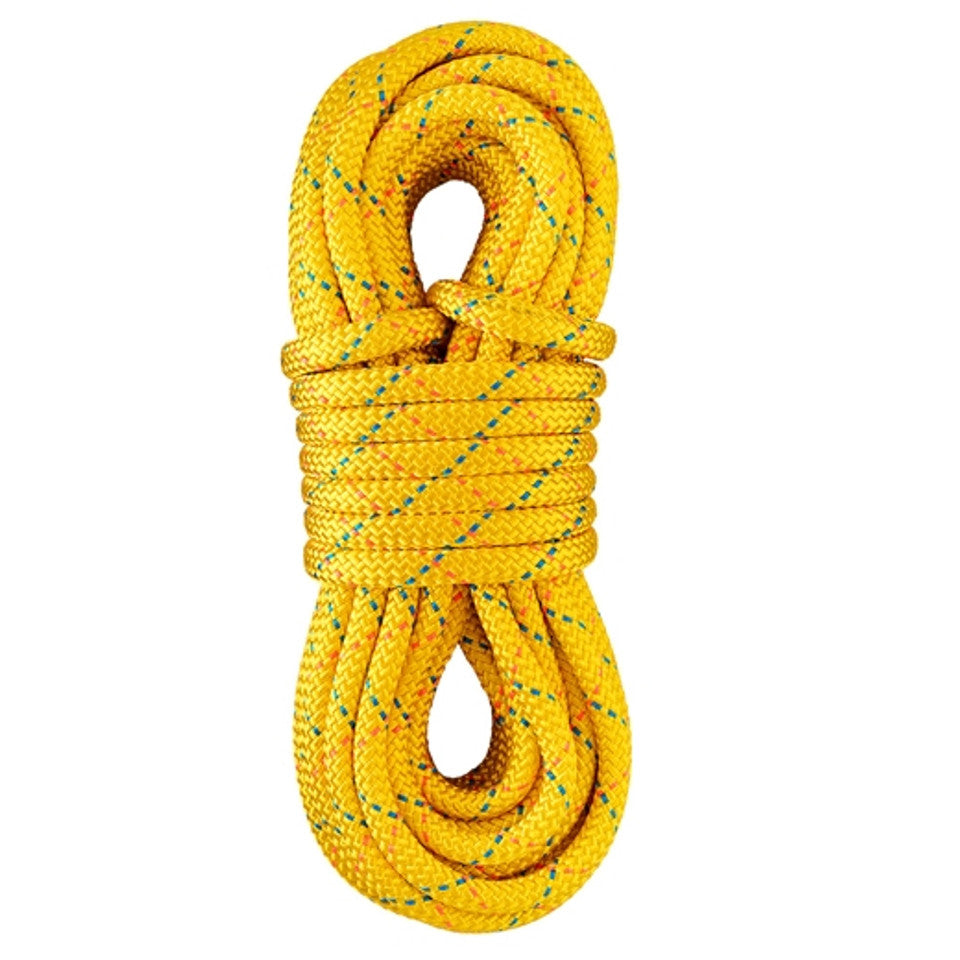

Sterling Atlas 5/8" Rigging Line

The 5/8" Atlas Rigging Line has a redesigned double-braid construction that offers an MBS of 18,000lbs while keeping the performance and handling of the thinner-diameter Atlas ropes. The new core lowers the static elongation of the Atlas, but still allows the rope to absorb the energy of a falling load and can limit peak forces in negative rigging applications. The tightly braided polyester sheath resists picking and provides great handling and knotability.

Details:

Diameter: 17mm

ABS: 86.3 kN (19,400 lbs)

Weight: 13.5 lbs/100'

Elongation at 300lbs: 0.4%

Elongation at 10% MBS: 4.5%

• Redesigned double-braid construction increases strength
• Tightly braided polyester sheath
• Perfect for use with Port-A-Wraps and rigging blocks
• Added eyes by Rope Logic include Scannable compatibility for track and trace capability.
